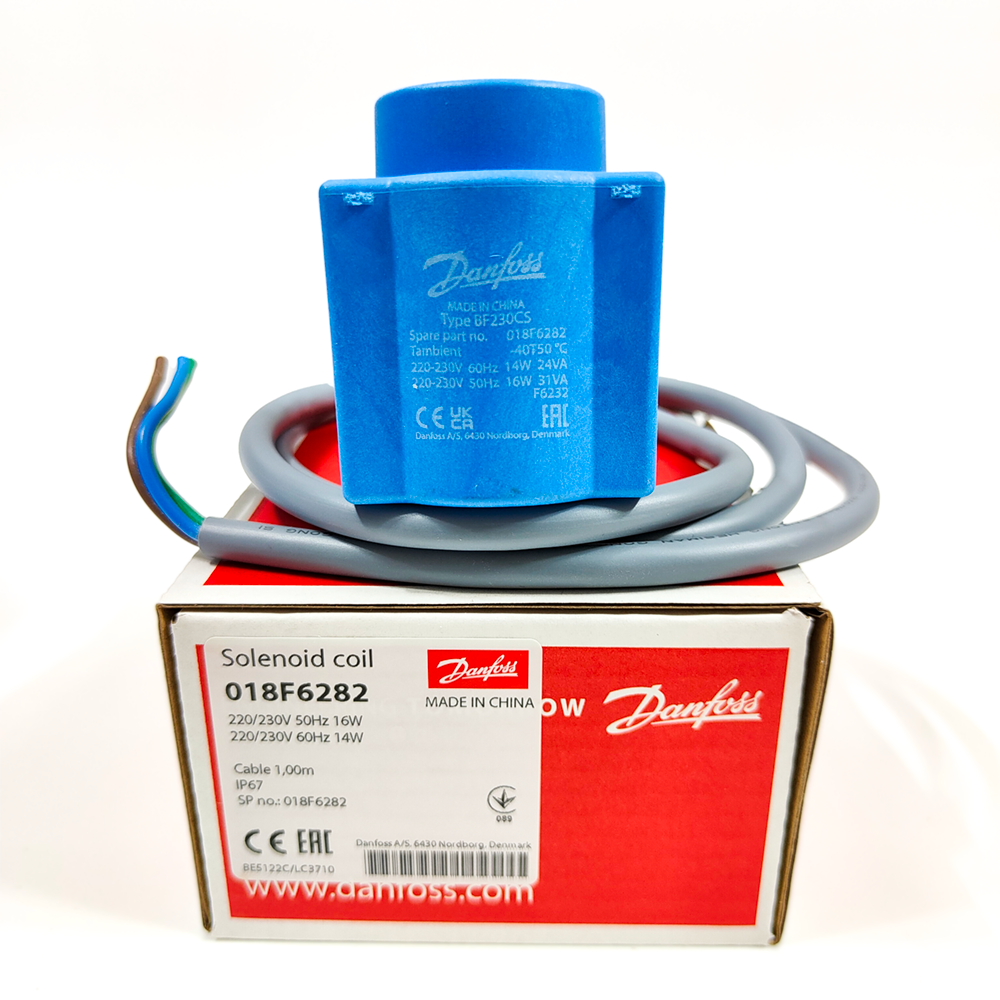

Cuộn coil Danfoss 220v/50Hz-10W (018F6282)

Cuộn coil Danfoss 220v/50Hz-10W (018F6282)

  • Type:                          BF230CS
  • Mã sản phẩm:            018F6282
  • Điện áp nguồn:         220 – 230 [V] AC
  • Tần số:                       50/60 Hz
  • Vỏ bọc bảo vệ:          IP67
  • Thương hiệu:            Danfoss
  • Xuất xứ:                     Danfoss China
Thương hiệu: Danfoss
Mã sản phẩm: 018F6282
Còn hàng

GỌI ĐỂ ĐẶT TRƯỚC

0985 601 415 (Thời gian: 8h00 - 20h00)

Solenoid coil, BF230CS, Cable, 1 m, Supply voltage [V] AC: 220 – 230, Multi pack

018F6282

  • Electrical connection: Cable
  • Supply voltage [V] AC: 220 – 230
  • Frequency [Hz]: 50/60 Hz
  • Enclosure rating IP: IP67



CHARACTERISTIC – C/N: 018F6282

VALUE
Gross weight 0.36 kg
Net weight 0.31 kg
Actuator size 13.5 mm
Ambient temperature range [°C] [Max] 50 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 120 °F
Ambient temperature range [°F] [Min] -40 °F
Approval LLC CDC TYSK
Cable diameter [mm] (C/N: 018F6282) 6.6 mm
Cable length [in]  40 in
Cable length [m] 1 m
Coil connection CABLE
Coil design standard VDE 0580
Coil fastening Clip-on
Coil winding insulation class Class H to IEC 85
Colour Blue
Compliance EN 60730-1
Conductor area [mm2] 3 x 0.75 mm2
Duty rating Continuous
Electrical connection Cable
Electrical connector 3 core cable
Enclosure rating IP (C/N: 018F6282) IP67
Frequency [Hz] 50/60 Hz
Further information Moulded cable
Identical product 018F8232
Packing format Multi pack
Parts Program name EV210B
EV212B
EV220B 15 – 50
EV220B 6 – 22
EV220B 65 – 100
EV222B
EV224B
EV227B
EV250B
EV251B
Power consumption 50Hz [VA] 31 VA
Power consumption 60Hz [VA] 24 VA
Power consumption [W] 50Hz 16 W
Power consumption [W] 60Hz 14 W
Product accessories Solenoid coil accessories
Product group – (C/N: 018F6282) Solenoid valves
Product name Solenoid coil
Quantity per packing format 24 pc
Rel. Humidity [% RH] [Max] 100 %
Rel. Humidity [% RH] [Min] 0 %
Serviceable No
Spare part number 018F6282
Supply voltage 50Hz Max [V] 230 V
Supply voltage 50Hz Min [V] 220 V
Supply voltage 60Hz Max [V] 230 V
Supply voltage 60Hz Min [V] 220 V
Supply voltage [V] AC [Max] 230 V
Supply voltage [V] AC [Min] 220 V
Type – (C/N: 018F6282) BF230CS
Type designation BF230CS
